Part Number: THE121161
/
Vendor ID Number: 4249
/
Custom:
1HR CYC TMR SURORDNRL W/O ENCL 120V 60Hz
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

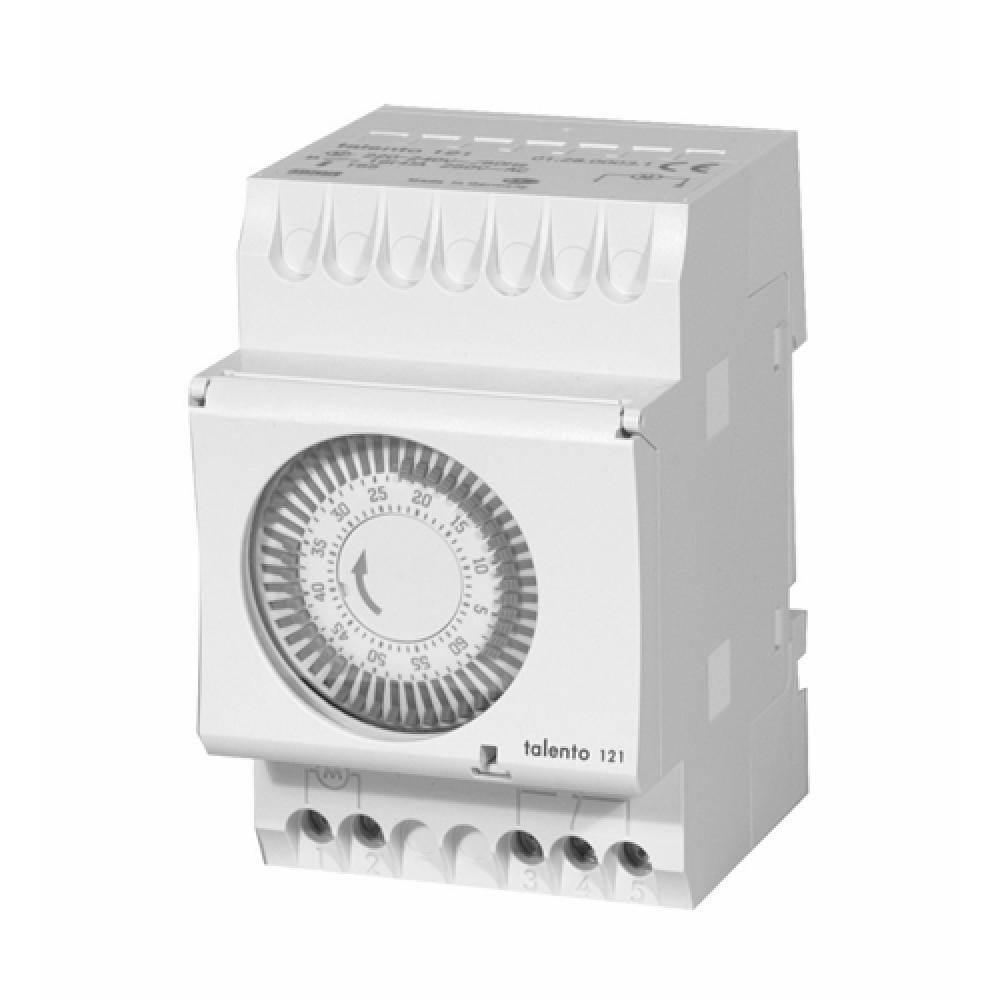

The 1HR CYC TMR SURORDNRL W/O ENCL 120V 60Hz 1-Hour Repeat Cycle Time Switch is a synchronous motor driven mechanical one-hour time switch intended as a low cost repeat cycle timer for industrial processes and other applications.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Lighting Controls
Action:
SPDT
Amperage Rating:
16
Application:
Indoor/Outdoor, Industrial Process
Brand Name:
Intermatic
Connection:
Screw Terminal
Contact Configuration:
1 NO/1 NC
Contact Rating:
16 AMP @ 120 - 250 VAC (Resistive), 750 WTT @ 250 VAC (Tungsten)
Country Of Origin:
DE
Enclosure:
Type 3R
Environmental Conditions:
0 - 95 RH Non-Condensing
Mounting:
Surface/DIN Rail Mount
Number Of Poles:
1
Operating Temperature:
+32 to +131 DEG F, 0 to +55 DEG C
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
3.31 HEIGHT X 2.13 WIDTH X 2.56 DEPTH IN, 8.41 HEIGHT X 5.41 WIDTH X 6.5 DEPTH CM
Spec Sheet:
Special Features:
Features: Continuous On/Off Load Cycling in a One-Hour Repeating Pattern, Can Be Used With an Intermatic 24-Hour or 7-Day Time Switch to Provide Repeat Cycle Switching During Selected Periods
Standard:
cULus Listed, CE, cULus Recognized
Stock Type:
Shelf Stock
Timer Duration:
24 HR/7 DAYS
Timing Range:
1.25 MIN - 24 HR/7 DAYS
Type:
Mechanical
UNSPSC:
39122208
Voltage Rating:
120
Wattage:
750
