Part Number: ET1725CPD82
/
Vendor ID Number: 4249
/
Custom:
7D 30A 2XSPSTORDPST 120-277V NEMA3R PLST
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 4.25"
Width: 7.30"
Product Overview

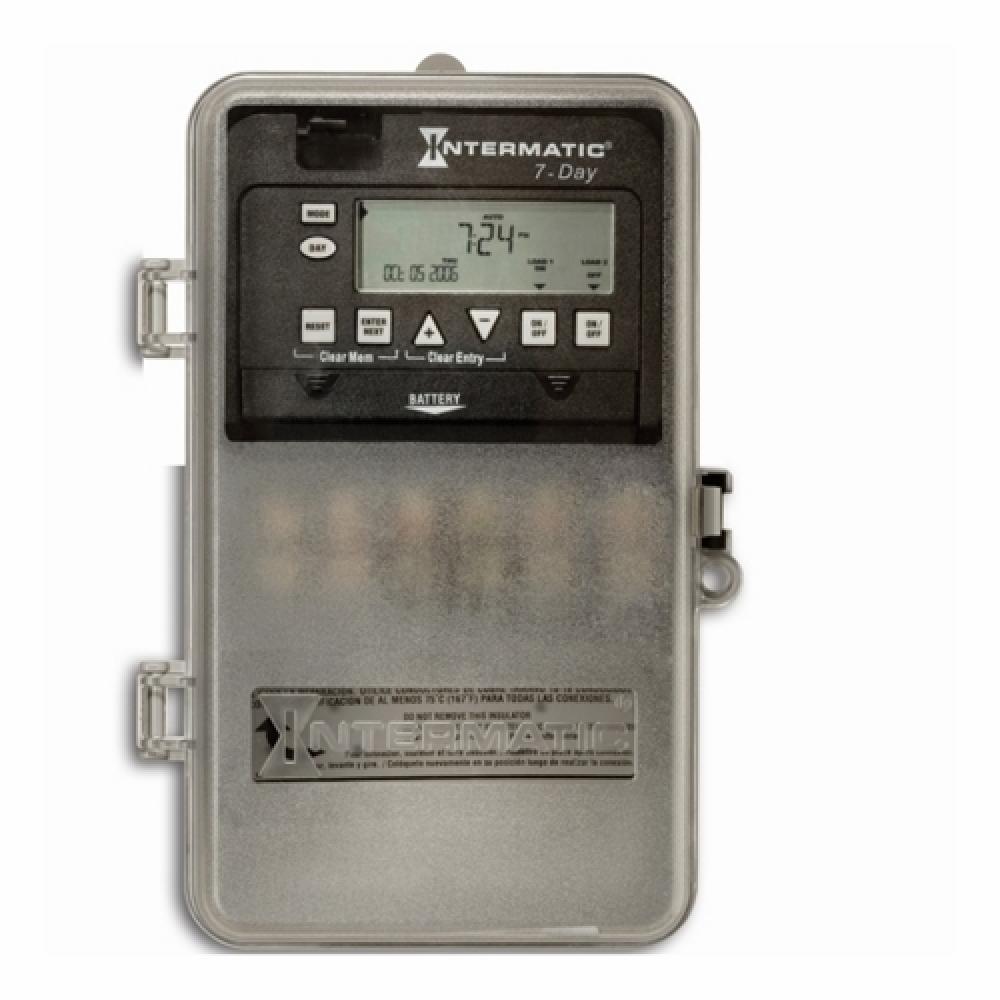

The 7D 30A 2XSPSTORDPST 120-277V NEMA3R PLST 7-Day Electronic Time Switch features independent 7-day programming to provide flexibility for applications where load switching differs each day of the week. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 28 setpoints or events can be preset to automatically repeat. The program can be disabled at any time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently regardless of the operating mode. Each time switch is housed in a lockable enclosure to protect against vandalism and unauthorized tampering.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
2 x SPST
Amperage Rating:
30
Application:
Outdoor, HVACR, Industrial
Brand Name:
Intermatic
Connection:
Teeter Type
Contact Configuration:
1 NO
Contact Rating:
30 AMP @ 120/240 VAC (Resistive NO), 20 AMP @ 28 VDC (Resistive NO), 30 AMP @ 120/240 VAC (Inductive NO), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO)
Country Of Origin:
CN
Enclosure:
NEMA 3R Plastic
Length:
11.8000 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +155 DEG F, -40 to +68 DEG C
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Contact Manufacturer
Spec Sheet:
Special Features:
Features: 7-Day, Multi-Voltage, Battery Backup, Pulse Output, 1 Year Warranty, Automatic Adjustment for Daylight Saving Time
Standard:
cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
Stock Type:
Shelf Stock
Timer Duration:
7
Timing Range:
1 MIN - 6 DAYS 23 HR 59 MIN
Type:
Electronic
UNSPSC:
39122208
Voltage Rating:
120 - 277
Weight:
3.790 L
