Part Number: FD15MH
/
Vendor ID Number: 4249
/
Custom:
IV 15MIN S/W T/S W/HOLD SPST
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 4.63"
Width: 2.10"
Product Overview

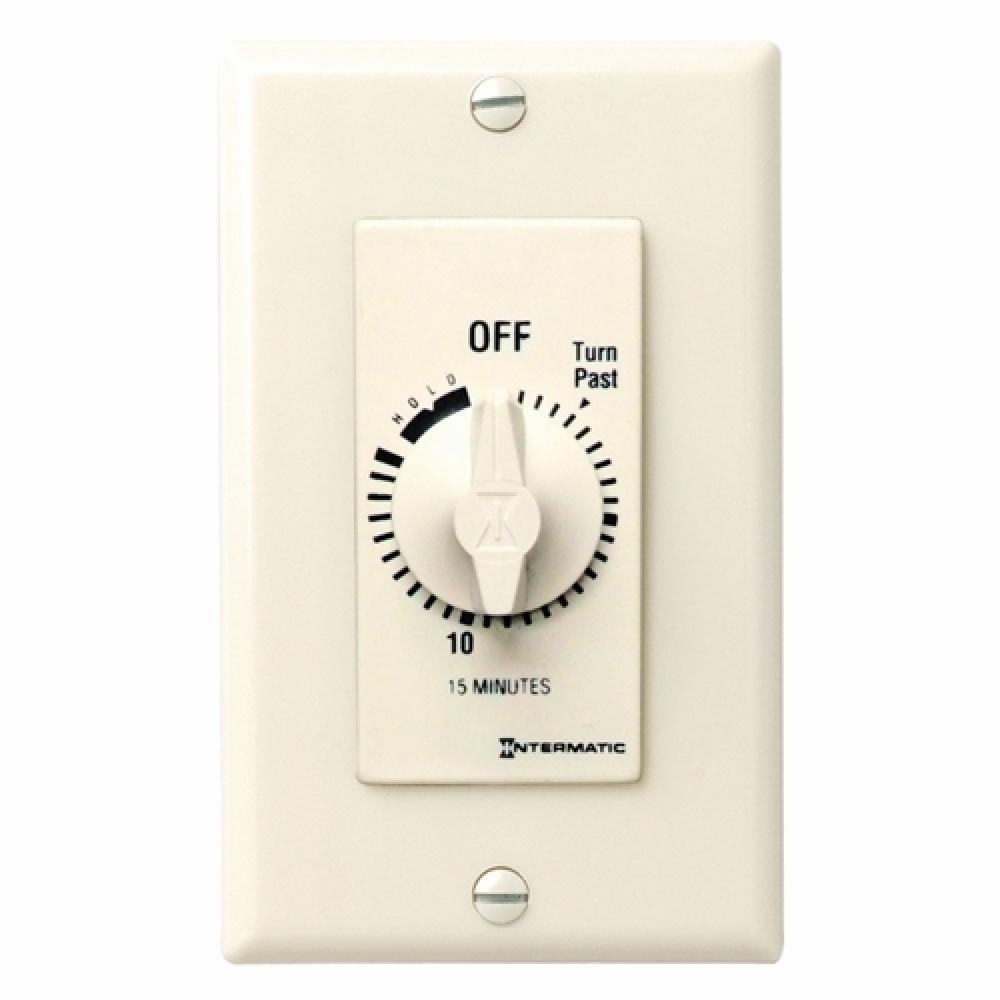

The IV 15MIN S/W T/S W/HOLD SPST The FD Series Decorator Auto-Off Timers are designed to replace any standard wall switch - single or multi-gang. This series of energy-efficient mechanical timers do not require electricity to operate. In addition, they automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Info & Guides
Technical Details
Details
Category:
Lighting Controls
Subcategory:
Lightswitches
Action:
1 x SPST
Amperage Rating:
15
Application:
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Brand Name:
Intermatic
Connection:
Teeter Type
Contact Configuration:
1 NO
Contact Rating:
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Country Of Origin:
TN
Length:
2.9000 IN
Mounting:
Wall Mount
Number Of Poles:
1
Operating Temperature:
-40 to +104 DEG F, -40 to +40 DEG C
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Contact Manufacturer
Size:
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Spec Sheet:
Special Features:
Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Hold Feature Enables User to Override the Automatic Shut-Off Function, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compa
Standard:
cCSAus Certified, UL Listed, UL Recognized, HVACR
Stock Type:
Shelf Stock
Timer Duration:
15
Timing Range:
15
Type:
Decorator Spring Wound Auto-Off
UNSPSC:
39122208
Voltage Rating:
125 - 277
Wall Plate Color:
Ivory
Weight:
0.350 L
