Item Sales Info
Part Number: NOXLV-4R1TWWW / Vendor ID Number: 104 / Custom:

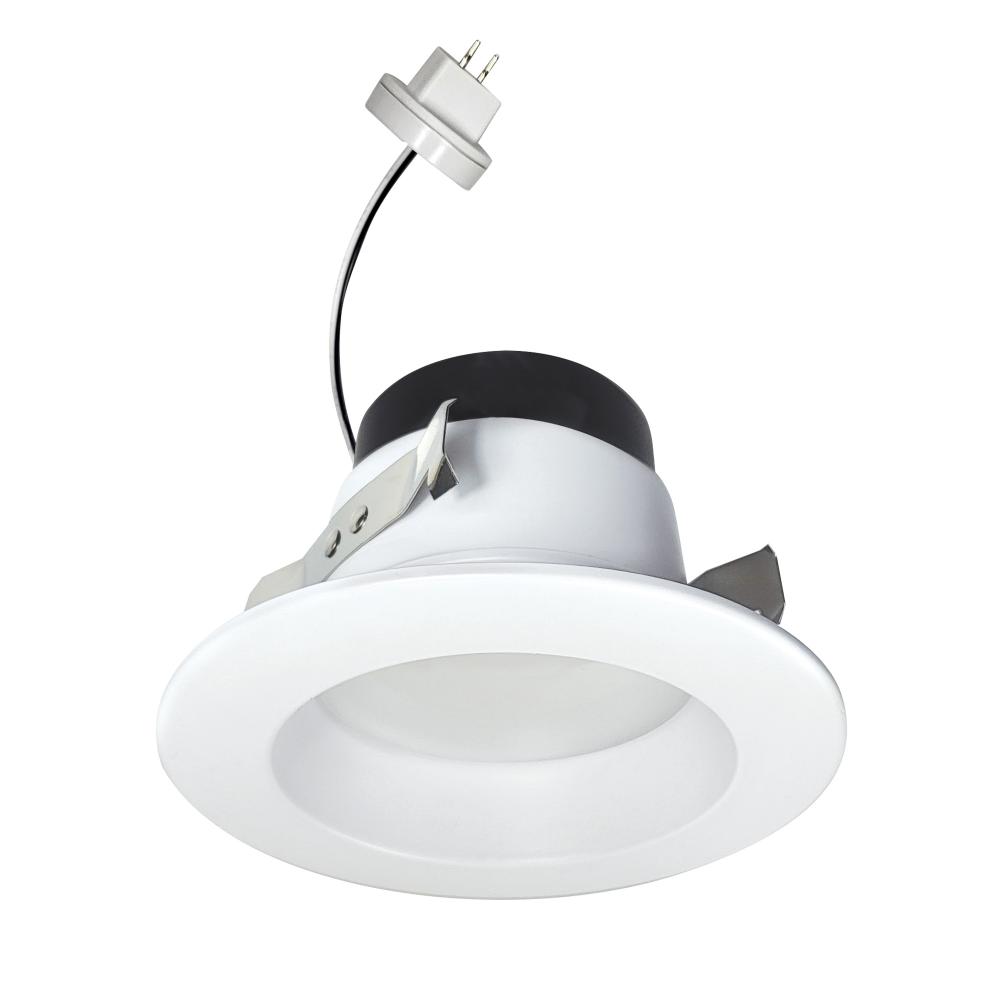

4" Onyx 12Vac Retrofit Reflector, 800lm / 11W, Selectable CCT, White finish

4" Onyx 12Vac Retrofit Reflector, 800lm / 11W, Selectable CCT, White finish

31
50
Pack Of: 1
2 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.25"
Width: 5.13"
Finish
White
Product Overview
4" Onyx Low Voltage Retrofit luminaires are perfect solution to convert low voltage recessed housings into LED luminaire. Each fixture include an integral tunable CCT switch to change the color temperature appearance. Spun aluminum construction provides clean sharp edges and is suitable for use with most 4" low voltage housings. Deep regressed optics and round aperture deliver even and glare-free illumination.
Input Voltage: 12V
Lumens / Wattage: 800lm / 11W
CCT / CRI: Selectable CCT / 90 CRI
Finish: White
Dimming: Triac or ELV
Optics: 95° Wide Flood
Listing: cETLus classified for Wet Locations
Product Availability
    Item appears to be in stock and ready to ship
CEC Substitute Item:
Additional Information
.4
Info & Guides
Spec Sheet
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Wattage:
12w
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Product Line:
LE49
Est. Shipping Wt.:
1
Length:
5.125
Lumens / Light Output:
800lm
Ship Carton Height:
5.375
Ship Carton Length:
5.5
Ship Carton Width:
3.5
Weight:
.3
CCT:
Selectable CCT (2700K, 3000K, 3500K, 4000K, 5000K)
CEC Database:
Y
CEC Item Number:
NOXLV-4**TW**
CEC Substitute Item:
NOXLV-4R2TWWW
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
12
Master Box L:
12
Master Box Qty:
12
Master Box W:
12
Master Box Wt.:
6
Product Family:
REC LED ONYX
Safety Listing:
cETLus
Wattage:
12W
