Item Sales Info
Part Number: ISPBS350
/
Vendor ID Number: 4052
/
Custom:
POLARIS EDGE Connector 350 Splice EPDM
64
86
Pack Of: EA
Pack Of: 1 EA
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.38"
Width: 8.83"
Product Overview

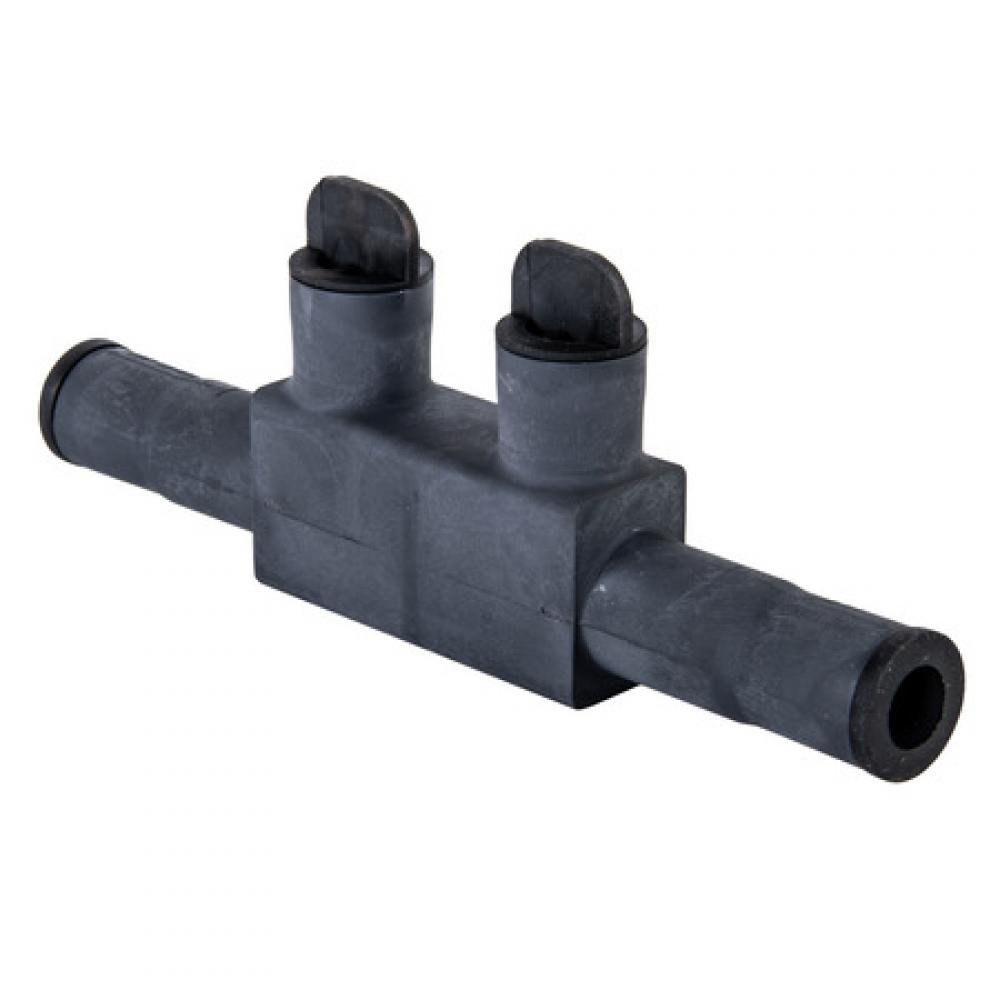

The Polaris ISPBS350 Multi-Tap Direct Burial Submersible In-Line Port Connector features 2 in-line ports sized for 350 MCM - 12 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Wire Termination
Brand Name:
NSI
Brochure:
Color:
Black
Country Of Origin:
USA
Environmental Conditions:
90 C
Finish:
Rubber
Installation Link:
Length:
1.2500 IN
Material:
EPDM Rubber
Number Of Conductors:
2
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
L=1.25 - W=8.83 - H=3.38
Spec Sheet:
Special Features:
Splice 350 MCM-6 AWG - Dual Rated
Stock Type:
Shelf Stock
Sub Brand:
Polaris EDGE
Tech Bulletin Link:
Temperature Rating:
90 C
Type:
Submersible Pedestal Connectors
UNSPSC:
39121409
Voltage Rating:
600 V
Weight:
.620 L
Wire Size:
350 MCM-12 AWG
Wire Type:
Class B & C
