Part Number: IPL4-3
/
Vendor ID Number: 4052
/
Custom:
POLARIS Ins Multi-Tap 4 3 Port SSE
36
48
Pack Of: EA
Pack Of: 1 EA
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.38"
Width: 1.19"
Product Overview

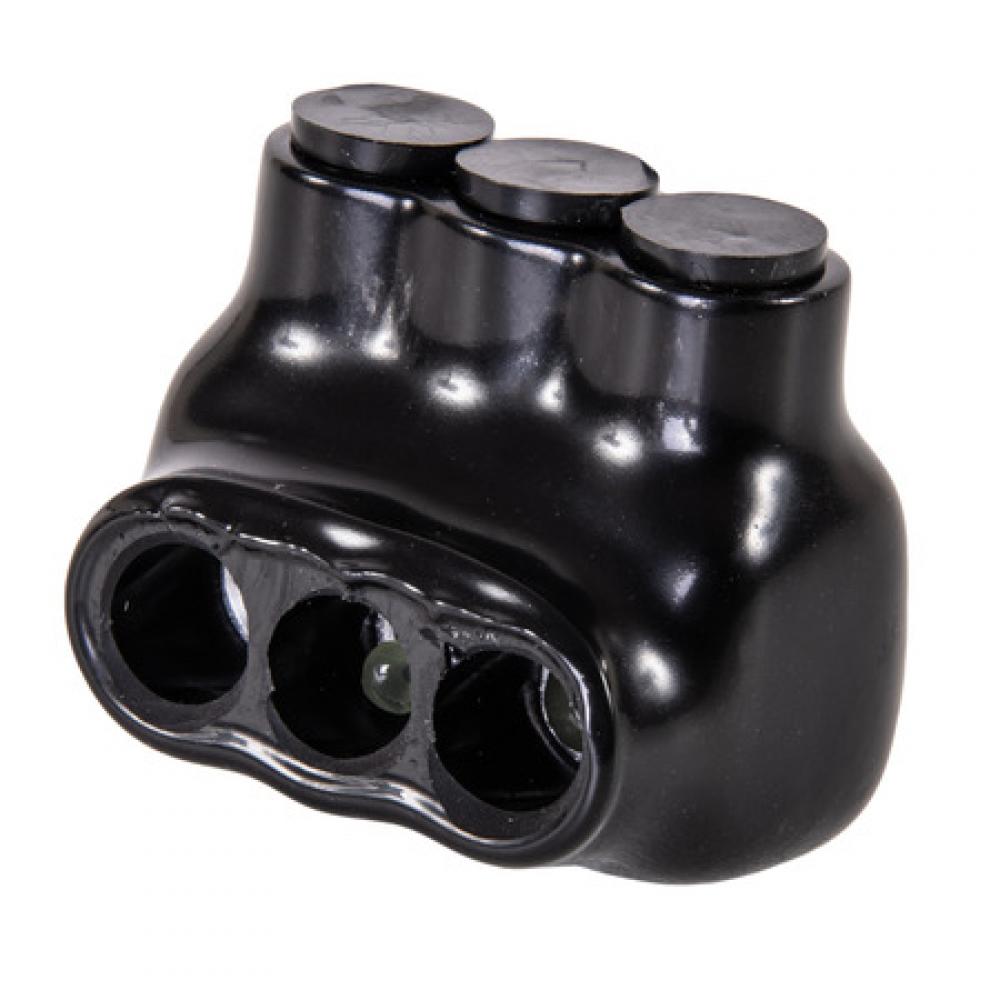

The Polaris IPL4-3 Multi-Tap Single Side Entry Connector features 3 ports sized for 4-14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Wire Termination
Brand Name:
NSI
Brochure:
Color:
Black
Country Of Origin:
USA
Environmental Conditions:
90 C
Finish:
Plastisol
Installation Link:
Length:
1.5500 IN
Material:
Plastisol
Number Of Conductors:
3
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
L=1.550 - W=1.188 - H=1.375
Spec Sheet:
Special Features:
(3) 4-14 AWG - Dual Rated
Standard:
cULus
Stock Type:
Shelf Stock
Sub Brand:
Polaris Black
Tech Bulletin Link:
Temperature Rating:
90 C
Type:
Single Sided Entry
UNSPSC:
39121409
Voltage Rating:
600 V
Weight:
.080 L
Wire Size:
4-14 AWG
Wire Type:
Class B & C
