Part Number: IPLD350-5C
/
Vendor ID Number: 4052
/
Custom:
POLARIS Vision Tap 350 5 Port DSE
106
74
Pack Of: EA
Pack Of: 1 EA
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.61"
Width: 2.41"
Product Overview

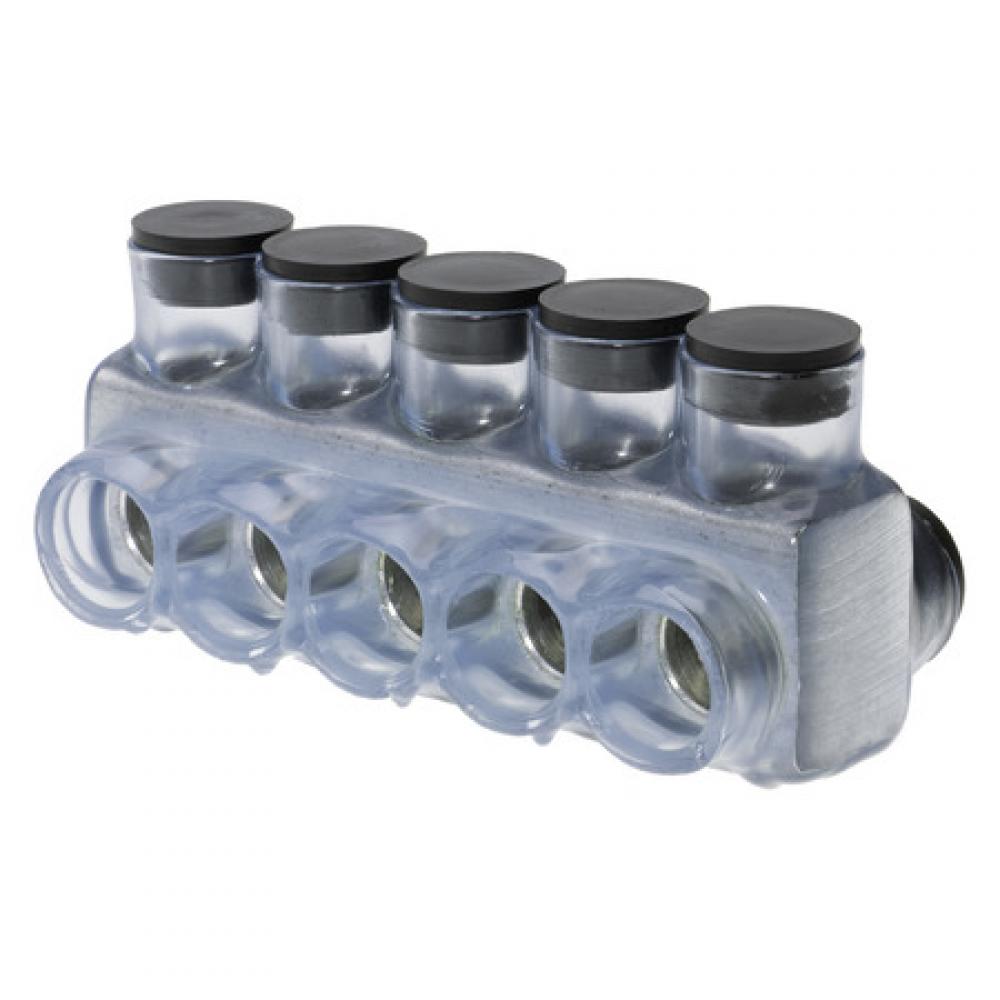

The Polaris IPLD350-5C Multi-Tap Dual-Sided Entry Vision Tap Connector features 5 ports sized for 350 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Wire Termination
Brand Name:
NSI
Brochure:
Color:
Clear
Country Of Origin:
USA
Enclosure:
Clear Plastisol
Environmental Conditions:
Dry Location Only
Finish:
Plastisol
Installation Link:
Length:
5.6200 IN
Material:
Plastisol
Number Of Conductors:
5
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
L=5.620 - W=2.410 - H=2.610
Spec Sheet:
Special Features:
(5) 350 MCM-6 AWG - Dual Rated
Standard:
cULus
Stock Type:
Shelf Stock
Sub Brand:
Polaris Vision Tap
Tech Bulletin Link:
Temperature Rating:
90
Type:
Double Sided Entry
UNSPSC:
39121409
Voltage Rating:
600
Weight:
.960 L
Wire Size:
350 MCM-6 AWG
Wire Type:
Class B & C
