Item Sales Info
Part Number: CFLEDR18-CC-V-WH
/
Vendor ID Number: 776
/
Custom:
Round Flush Mount, universal 120V-347V, 0-10V dimming
224
00
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

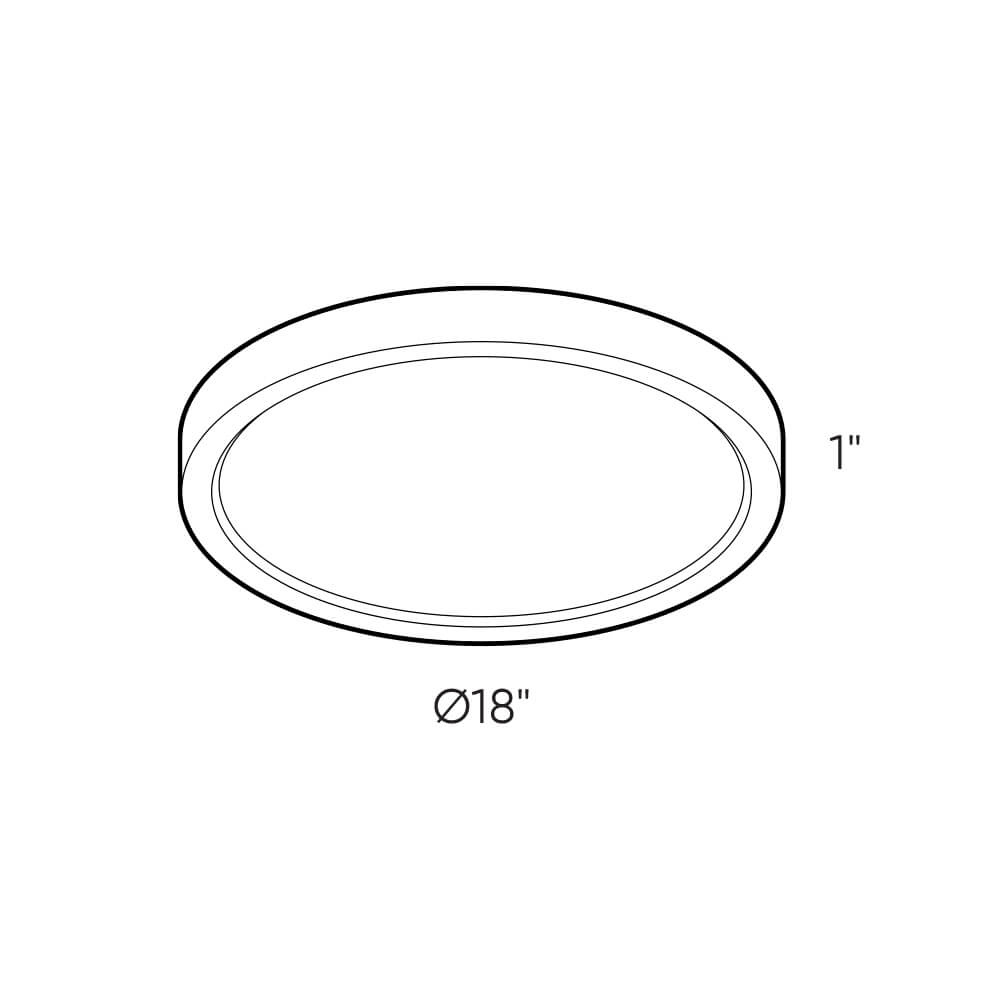

Dimensions
Height: 1.00"
Width: 18.00"
Length: 18.00"

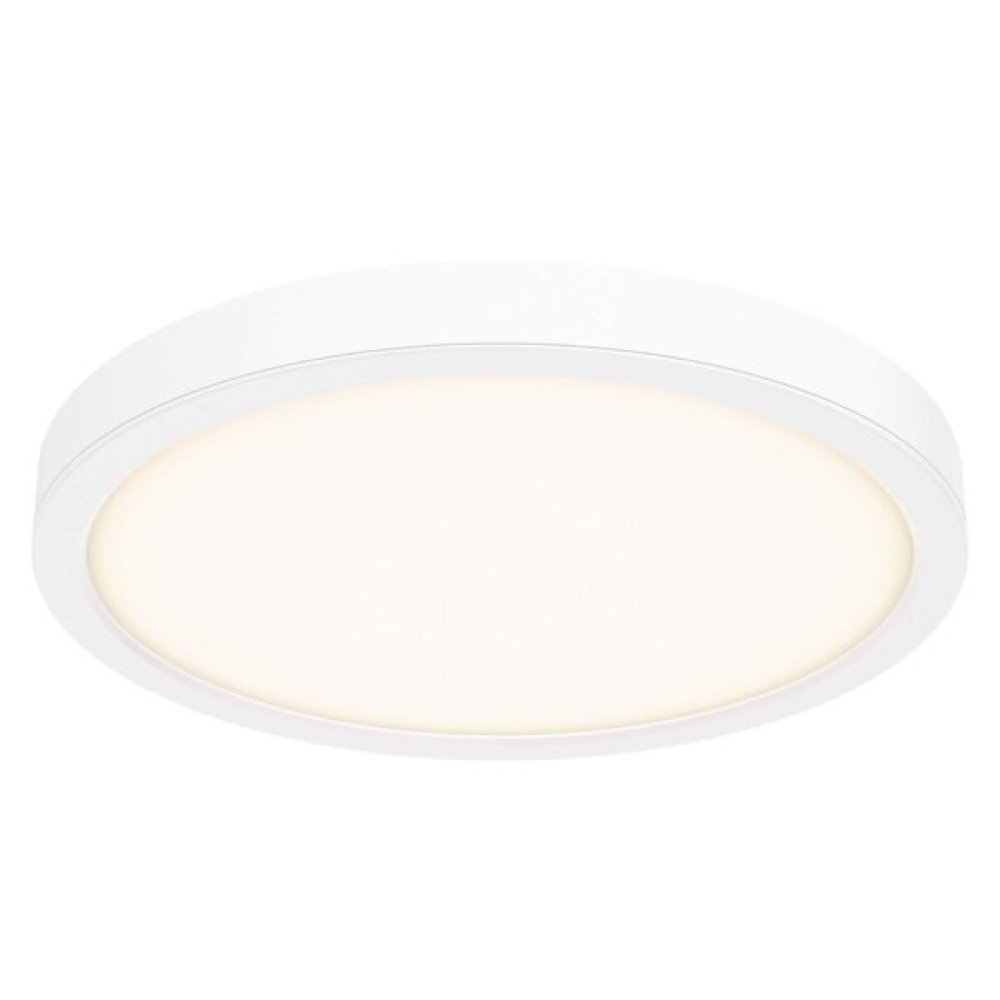

Product Overview
Our LED flush mounts incorporate Edge-Lit technology, eliminating hot spots or glare. Can be installed inside or outside and offer 5 switch-selectable CCT settings – 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K
Product Availability
-
Purchase now and we'll ship when it's available
Additional Information
Frosted lens
Integrated dimmable driver
Over 50,000 hours of service life
Smooth 360° wide spread
Suitable for outdoor locations on covered ceilings only
Info & Guides
Technical Details
Details
Finish:
White /vendors/vendorImages white.jpg
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Prop 65 /vendors/vendorImages prop65.png
Category:
Ceiling
Subcategory:
Flushmount
Finish:
White
Option:
Outdoor
Prop 65
Title 24
Family:
Delta
Voltage:
120 V/ 277 V/ 347 V
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
2.25
Ship Carton Length:
18.25
Ship Carton Width:
18
Ship Weight:
6.6
Warranty:
5 Years Limited
Beam Angle:
110
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
2974
Dimmer Type:
0-10V
Indoor:
Yes
IP Rating:
IP44
Lens Material:
PC
Location Rating:
Wet Rated
Max Wattage:
30 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Prop 65:
View
Safety Rating:
ETL Approved
Shipping Master Height:
20.47
Shipping Master Length:
20.28
Shipping Master Quantity:
5
Shipping Master Weight:
35
Shipping Master Width:
12.6
Title 24:
Yes
Wiring:
Hardwired
