Item Sales Info

Part Number: FWZ53-120U / Vendor ID Number: 4249 / Custom:

120V 60Hz FLUSH MOUNT 2.1 X 1.0" BEZEL

Call For Price

Call for Availability

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 2.25"

Width: 3.25"

Product Overview

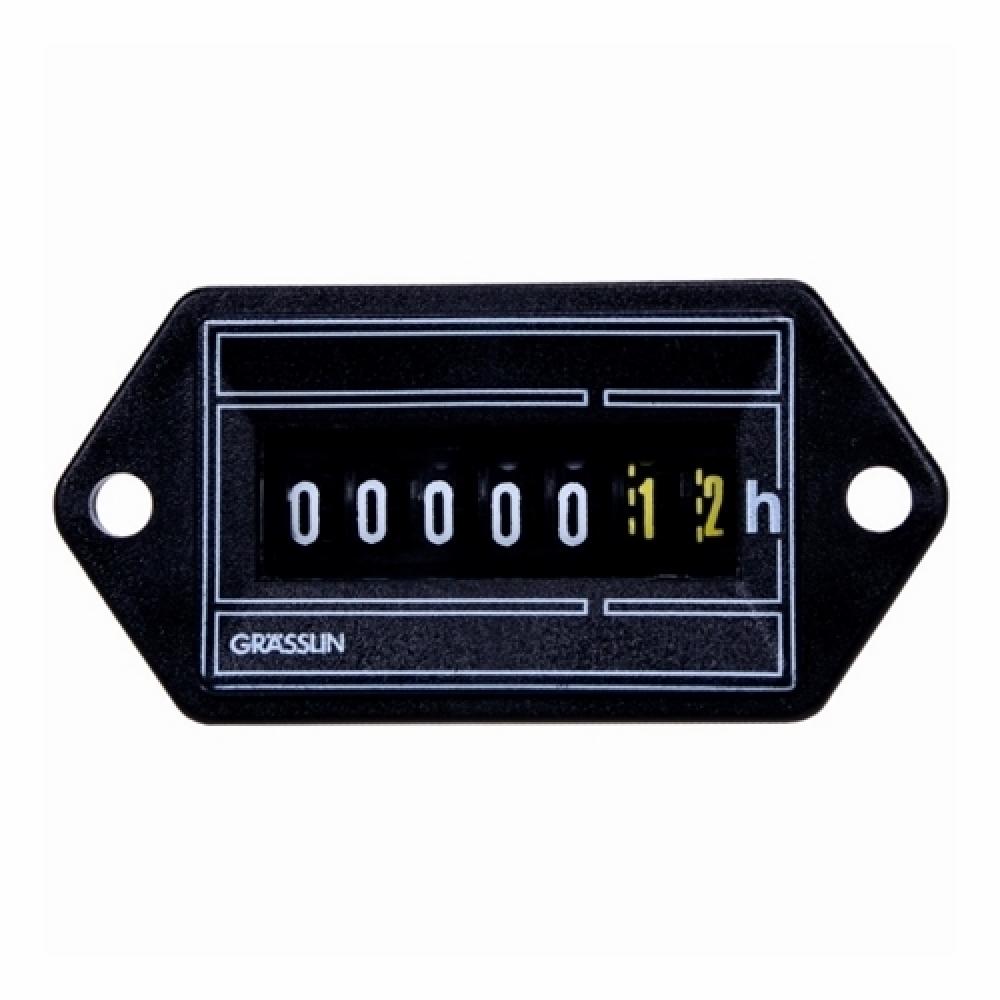

The 120V 60Hz FLUSH MOUNT 2.1 X 1.0" BEZEL The FWZ53 Series AC Hour Meters are non-resetable and flush-panel mounted with watertight/dusttight sealed bezels. All models are black plastic with white numerals on black background.

Product Availability

Item is usually in stock, but we'll be in touch if there's a problem

Frequency Rating:

Info & Guides

File

Technical Details

Details

Electrical Category:

Testing And Measuring

Electrical Subcategory:

Indicating And Recording Instruments

Electrical Subtype:

Hour Meter

Bezel Face Size:

2.09 X 1.02 IN, 36 X 24 MM

Bezel Face Type:

Rectangle

Bezel To Back Length:

2.13 IN, 54 MM

Brand Name:

Intermatic

Country Of Origin:

Dimensions:

2.09 LENGTH X 1.02 WIDTH X 2.30 DEPTH IN, 53 LENGTH X 26 WIDTH X 58.3 DEPTH MM

Display:

Analog

Frequency Rating:

Length:

3.7500 IN

Model:

FWZ53

Mounting:

Flush-Panel Mount

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Contact Manufacturer

Spec Sheet:

Spec Link

Special Features:

Features: 0.16 IN High Numerals Digits, Watertight/Dusttight Sealed Bezel, 7 Digits Measure

Standard:

UL Recognized, CSA, CE

Stock Type:

Shelf Stock

Temperature Rating:

-40 to +160 DEG F, -40 to +72 DEG C

Terminal Connection:

1/4 IN Spade and Screw Clamp

Type:

Non-Resettable, AC Hour Meter

UNSPSC:

41111949

Voltage Rating:

120

Wattage:

Weight:

0.155 L
