Part Number: 97121
/
Vendor ID Number: 3823
/
Custom:
Blk Insul 2Cndtr DulEntSplc 2StScs 500 6
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview

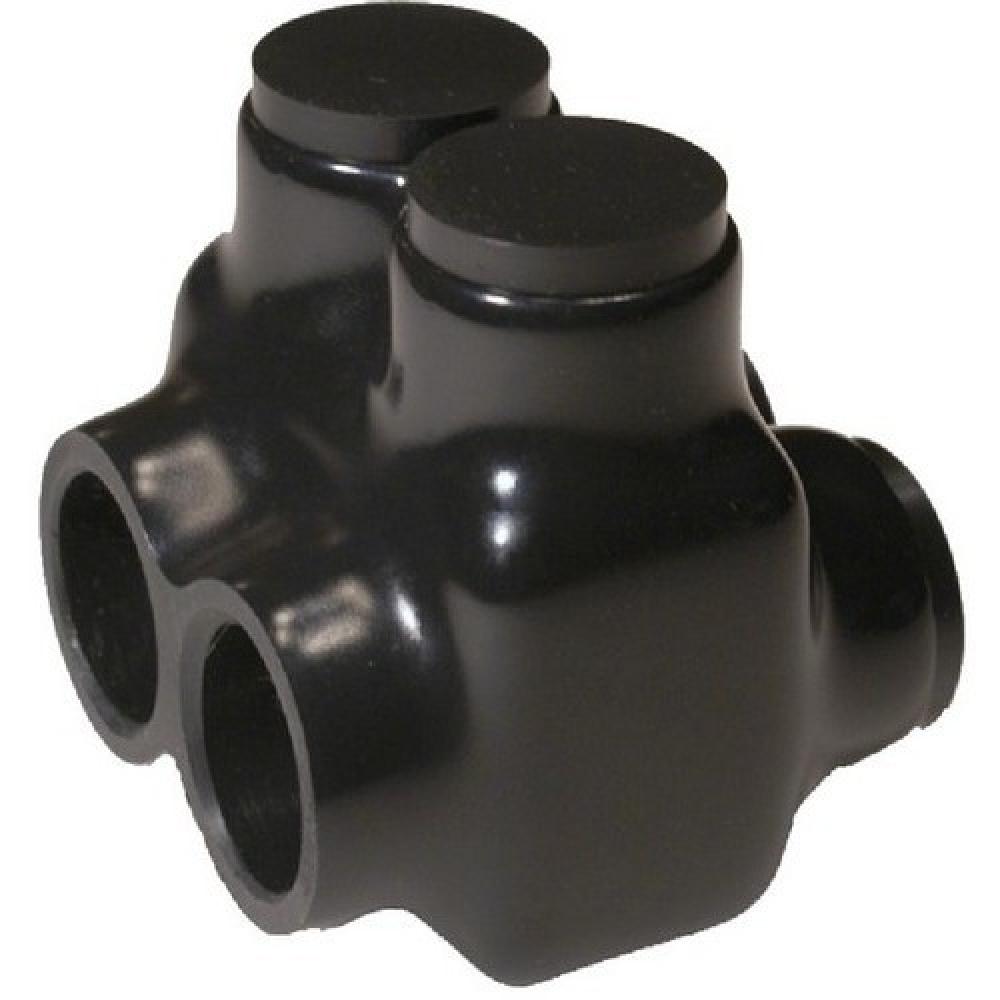

Black Insulated Dual Entry Splice Electrical Power Connector 2 Port 500 MCM-#6 - 2 Conductor Dual Entry Insulated Connector for low cost installations.Black Insulated 2 Conductor Dual Entry Electrical Power Connector 2 Port 500 MCM-#6 - 2 Conductor Dual Entry Splice features include: Optional wire entry from either side Dual Entry Insulated Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires Insulated Connector has rugged high-dielectric Rubber/Vinyl Coating Pre-Filled with Oxide Inhibitor Easy Re-entry for Changes, Inspection or Troubleshooting Plugs Marked with Connector Max Wire Size for easy identification Temperature Range of ndash;49deg;F to 194deg;F (ndash;45deg; to 90deg;C) ANSI C119.4 amp; cULus 486b Listed thru 750MCM UL/CSA Certified through 750MCM size Rated for use with 194deg;F(90deg;C) Cables 600 Volt One wire per terminal Dimension Measurements = Inches Order Qty of 1 = 1 Piece Below is more info on our Black Insulated Dual Entry Electrical Power Connector Splices 2 Port 500 MCM-#6
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Brand Name:
MORRIS PRODUCTS
Brochure:
Color:
Black
Country Of Origin:
IND
Material:
6061-T6 Aluminum
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Stock Type:
Shelf Stock
Temperature Rating:
-49oF to 194oF (-45o to 90oC)
UNSPSC:
39121448
Weight:
1.200 L
