Part Number: NLCBC2-55640WW/10LE4EM
/
Vendor ID Number: 104
/
Custom:
![5" Cobalt Click Square Retrofit Reflector with Square Aperture, 1000lm / 12W, 4000K, White](/vendors/104/large/NLCBC2-556WW.jpg "5" Cobalt Click Square Retrofit Reflector with Square Aperture, 1000lm / 12W, 4000K, White")

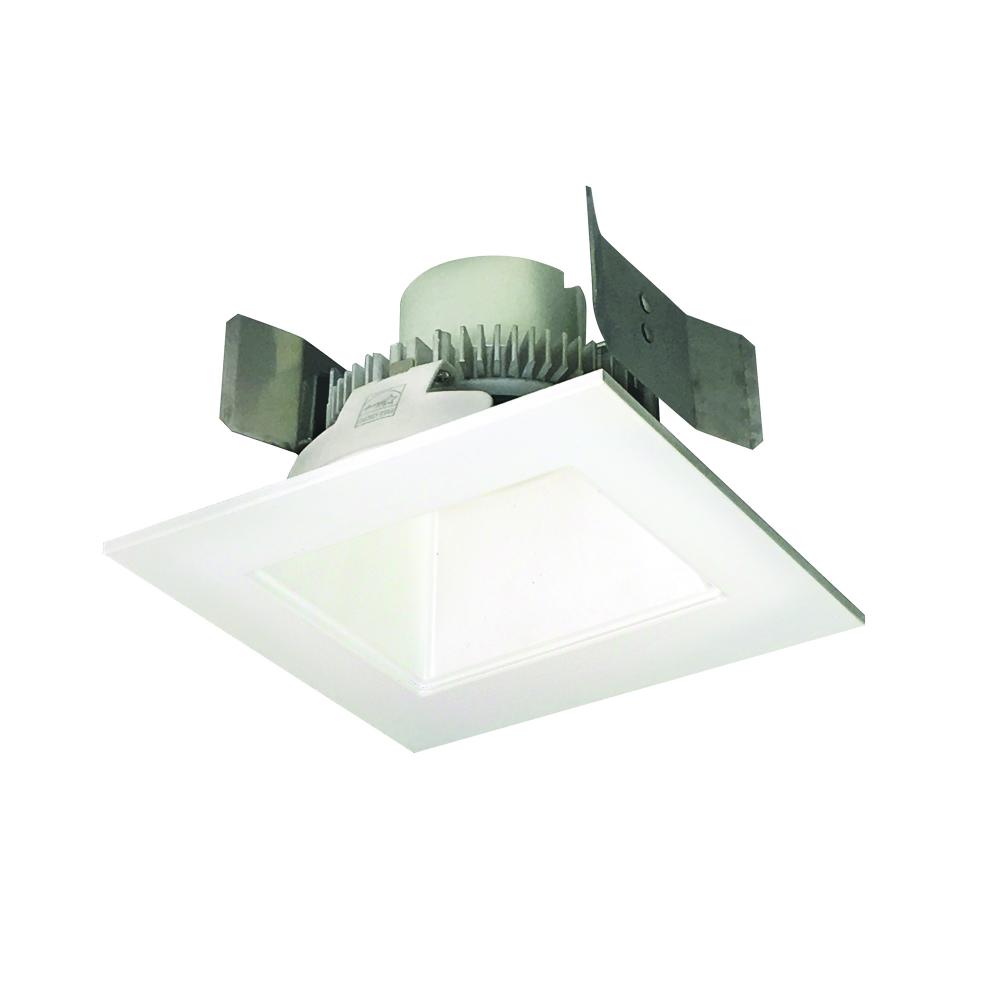

5" Cobalt Click Square Retrofit Reflector with Square Aperture, 1000lm / 12W, 4000K, White
142
80
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 4.25"
Width: 6.50"
Finish
White
Product Overview
5" Cobalt Click LED retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The patented "Click" system allows the aluminum spun trim to be easily changed in the field with the help of spring mounting clips which properly secure them to the LED module.
Input Voltage: 120-277VAC
Lumens / Wattage: 1000lm / 12W
Color Temperature: 2700K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /6W suffix)
Finish: White Reflector / White Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations
Emergency: Luminaire includes connections for Nora LED dedicated housing with emergency battery (/EM)
Input Voltage: 120-277VAC
Lumens / Wattage: 1000lm / 12W
Color Temperature: 2700K
Dimming: Phase or 0-10V (requires Nora LED dedicated housing with /6W suffix)
Finish: White Reflector / White Flange
Included: Medium Base Retrofit Adapter
Listing: cULus classified for wet locations
Emergency: Luminaire includes connections for Nora LED dedicated housing with emergency battery (/EM)
Product Availability
-
Purchase now and we'll ship when it's available
Additional Information
1.4
Info & Guides
Technical Details
Details
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Product Line:
LE86
Est. Shipping Wt.:
3
Length:
6.5
Lumens / Light Output:
1000lm
Ship Carton Height:
5
Ship Carton Length:
7
Ship Carton Width:
7
Weight:
1.1
CCT:
4000K
CEC Database:
Y
CEC Item Number:
NLCBC2-5********/10
CEC Substitute Item:
NLCBC2-55130WW/10LE4
Contains Battery:
N
Country of Origin:
CHN
CRI:
90
DLC Listed:
No
Master Box H:
6
Master Box L:
22
Master Box Qty:
6
Master Box W:
15
Master Box Wt.:
10
Product Family:
5" Cobalt Click Retrofit
Safety Listing:
cULus
Wattage:
12W
