Part Number: NELOSW-8RTWMPWLE4
/
Vendor ID Number: 104
/
Custom:
![8" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1550lm / 16W, Matte](/vendors/104/large/NELO-12RTWMPW.jpg "8" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1550lm / 16W, Matte")

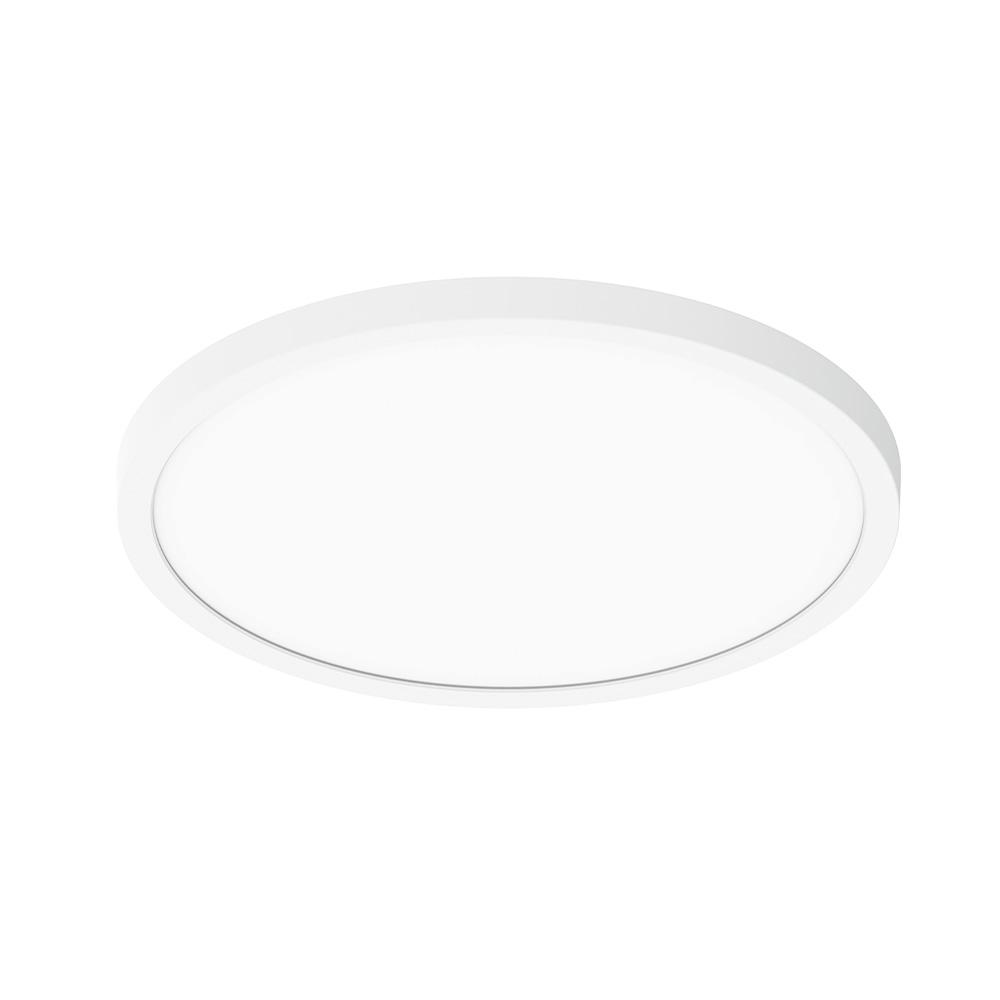

8" ELO LED Surface Mount Luminaire with Selectable Lumens & CCT, Up to 1550lm / 16W, Matte
47
90
Pack Of: 1
596 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 1.75"
Width: 8.88"
Finish
Matte Powder White
Product Overview
8" ELO LED luminaires are a thin 5/8" surface mounted luminaire two tunable switches; Selectable Lumens allows the end user
to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes.
Input Voltage: 120-277V
Lumens / Wattage: Selectable Lumens (1050lm / 10W; 1350lm / 13W; 1550lm / 16W)
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Listing: cETLus Listed for Wet Locations
to determine the wattage input & Selectable CCT changes the color temperature appearance. Luminaires mounts easily over a standard or fire rated junction boxes.
Input Voltage: 120-277V
Lumens / Wattage: Selectable Lumens (1050lm / 10W; 1350lm / 13W; 1550lm / 16W)
Color Temperature: Selectable CCT (27K/30K/35K/40K/50K)
Color Rendering Index: 90+ CRI
Dimming: 0-10V
Finish: Matte Powder White
Listing: cETLus Listed for Wet Locations
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
1.4
Info & Guides
Technical Details
Details
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Finish:
Matte Powder White
Category:
Surface
Product Line:
LE88
Est. Shipping Wt.:
3
Length:
8.875
Lumens / Light Output:
Selectable Lumens (1050lm / 1350lm / 1550lm)
Ship Carton Height:
2.75
Ship Carton Length:
9.375
Ship Carton Width:
9.375
Weight:
1
CCT:
Selectable CCT (27K / 30K / 35K / 40K / 50K)
CEC Database:
Y
CEC Item Number:
NELOSW-8RTWMPW
CEC Substitute Item:
NELO-8RTWMPW
Contains Battery:
N
Country of Origin:
MYS
CRI:
90
DLC Listed:
No
Master Box H:
9
Master Box L:
20
Master Box Qty:
12
Master Box W:
20
Master Box Wt.:
17
Product Family:
8" ELO
Safety Listing:
cETLus
Wattage:
Selectable Wattage (10W / 13W / 16W)
