Part Number: SB1810
/
Vendor ID Number: 4052
/
Custom:

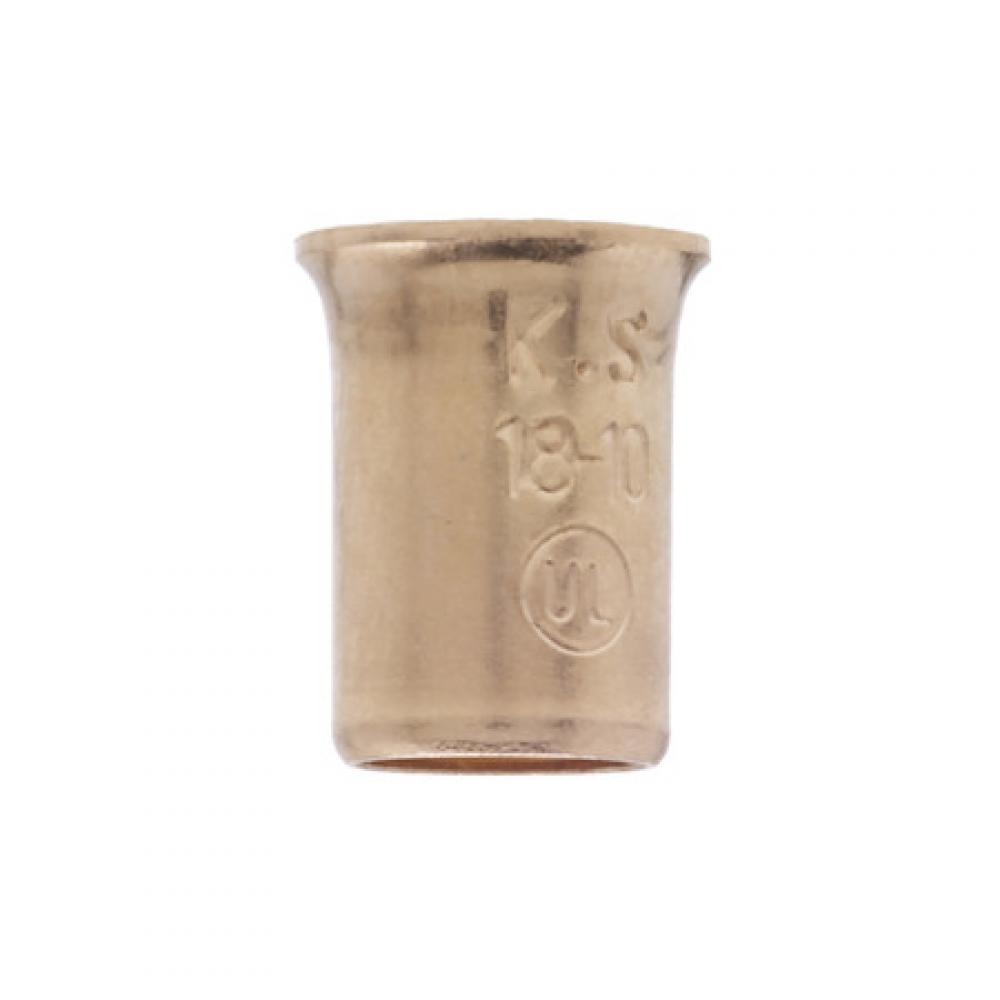

Easy Twist Crimp Sleeve Copper 18-10
Call For Price
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 0.24"
Width: 0.30"
Product Overview
The Easy-Twist SB1810 100-Count Pack of Copper Crimp Sleeve Wire Connectors are designed for use on wires in the 18-10 AWG size range. The simple sleeve design forms low-resistance connections in a tight space and installs using a specialized crimp tool or adjustable pliers. Use crimp sleeves to permanently connect wires in grounding, uninsulated or small motor applications where vibration resistance is a concern.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Splicing Wire
Brand Name:
NSI
Brochure:
Color:
Copper
Compare Number:
1000
Country Of Origin:
TWN
Environmental Conditions:
105 C
Finish:
Copper
Length:
.3740 IN
Material:
Copper
Number Of Conductors:
1
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
L=.374 - W=.240 - ID=.204
Spec Sheet:
Special Features:
Copper Crimp Sleeves - 100 Pcs Blister
Standard:
UL486C Listed
Stock Type:
Shelf Stock
Sub Brand:
Easy Twist
Temperature Rating:
105 C
Type:
Crimp Sleeve Wire Connectors
UNSPSC:
39121409
Voltage Rating:
600 V
Weight:
.224 L
Wire Size:
18-10 AWG
Wire Type:
CU Wire Only
