Part Number: IT-250
/
Vendor ID Number: 4052
/
Custom:
POLARIS Ins 2 Port 250
57
86
Pack Of: EA
Pack Of: 1 EA
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 2.25"
Width: 2.25"
Product Overview

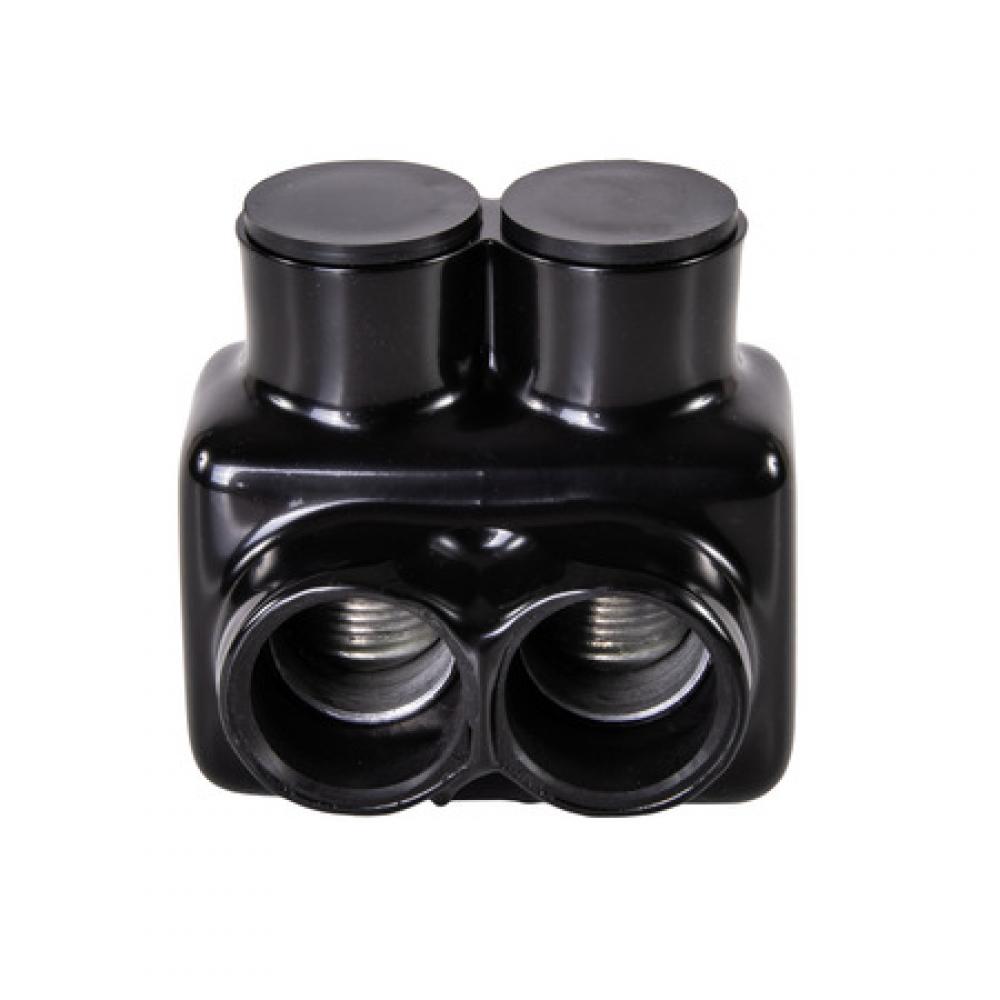

The Polaris IT-250 Multi-Tap Dual-Side Entry Connector features 2 ports sized for 250 MCM to 6 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
Wire Termination
Brand Name:
NSI
Color:
Black
Country Of Origin:
USA
Environmental Conditions:
90 C
Finish:
Plastisol
Length:
2.1200 IN
Material:
Plastisol
Number Of Conductors:
2
Number Of Poles:
1
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
Yes
Size:
L=2.120 - W=2.250 - H=2.250
Spec Sheet:
Special Features:
(2) 250 MCM-6 AWG - Dual Rated
Standard:
cULus
Stock Type:
Shelf Stock
Sub Brand:
Polaris Black
Tech Bulletin Link:
Temperature Rating:
90 C
Type:
Multi Cable
UNSPSC:
39121409
Voltage Rating:
600 V
Weight:
.240 L
Wire Size:
250 MCM-6 AWG
Wire Type:
Class B & C
